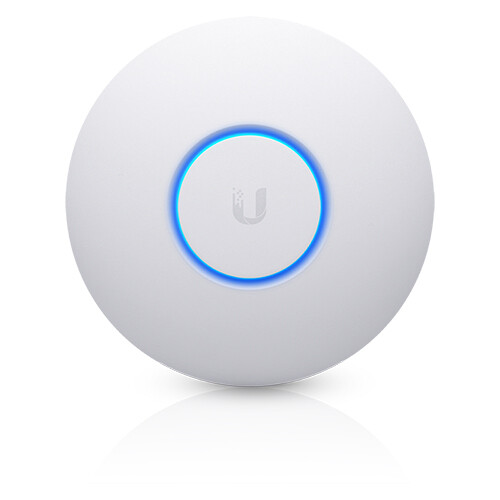

Ubiquiti AC Pro Indoor & Outdoor (NHU-UAP-AC-PRO-V2)
SKU NHU-UAP-AC-PRO-V2
350 available
1
Product Details
Specifications
| Mechanical | |
|---|---|
| Dimensions | Ø196.7 x 35 mm (Ø7.7 x 1.4") |
| Weight | Without mount: 350 g (12.4 oz) With mount: 450 g (15.9 oz) |
| Hardware | |
| Networking interface | (2) GbE RJ45 ports |
| Management interface | Ethernet |
| Power method | PoE Passive PoE, 48V |
| Power supply | UniFi PoE switch 48V, 0.5A PoE adapter (Included) |
| Supported voltage range | 44—57V DC |
| Max. power consumption | 9W |
| Max. TX power 2.4 GHz 5 GHz 6 GHz |
22 dBm 22 dBm – |
| MIMO 2.4 GHz 5 GHz 6 GHz |
3 x 3 3 x 3 – |
| Throughput rate 2.4 GHz 5 GHz 6 GHz |
450 Mbps 1300 Mbps – |
| Antenna gain 2.4 GHz 5 GHz 6 GHz |
3 dBi 3 dBi – |
| Button | Factory reset |
| Mounting | Wall, ceiling (Included) |
| Ambient operating temperature | -10 to 70° C (14 to 158° F) |
| Ambient operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| Software | |
| WiFi standards | 802.11 a/b/g/n/ac |
| Wireless security | WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES) |
| BSSID | 4 per radio |
| VLAN | 802.1Q |
| Advanced QoS | Per-user rate limiting |
| Guest traffic isolation | Supported |
| Power save | Supported |
| WMM | Voice, video, best effort, and background |
| Concurrent clients | 250+ |
| Supported Data Rates (Mbps) | |
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11b | 1, 2, 5.5, 11 Mbps |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11n | 6.5 Mbps to 450 Mbps (MCS0 - MCS23, HT 20/40) |
| 802.11ac | 6.5 Mbps to 1300 Mbps (MCS0 - MCS9 NSS1/2/3, VHT 20/40/80) |
