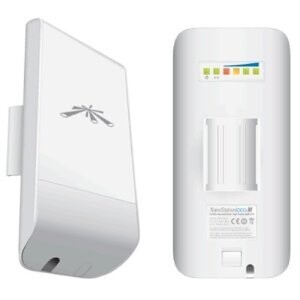

The original NanoStation set the bar for the world's first low-cost and efficiently designed outdoor broadband CPE. The NanoStation Loco M take the same concept to the future with new redesigned sleek and elegant form-factors. 150+ Mbps real outdoor throughput and up to 15km+ range. Featuring 2x2 MIMO technology, the new NanoStation links significantly faster and farther than ever before. Easily mountable to a pole/mast with mounting straps provided.

Processor Specs: Atheros MIPS 24KC, 400 MHz

Memory: 32 MB SDRAM, 8 MB Flash

Networking Interface: 1x 10/100 Ethernet Port

Wireless transmission speed: up to 300 Mbps

Operating Frequency: 2412-2462 MHz

Wi-Fi Standards: 802.11b/g/n

Operation mode: AP, Client, WDS

Encryption: WEP 64/128/152, WPA, WPA2, 802.1X

Gain: 8 dBi

Polarization: Dual Linear

Max. Power Consumption: 5.5 W

Max. Output power: 23 dBm

Sensitivity: -83 dBm

Dimensions: 163x31x80 mm

Weight: 0.18 kg

Power Supply (PoE): 24V, 0.5A

Power Method: Passive Power over Ethernet (pairs 4, 5+; 7, 8 return)

Enclosure Characteristics: Outdoor UV Stabilized Plastic

Mounting: Pole Mounting Kit Included

Operating Temperature: -30 ‒ 75° C

Operating Humidity: 5 - 95%

Supported OS: AirOS

Default IP: 192.168.1.20

Default name: ubnt

Default password: ubnt
