12th Gen Hybrid Power Makes Multitask Easy

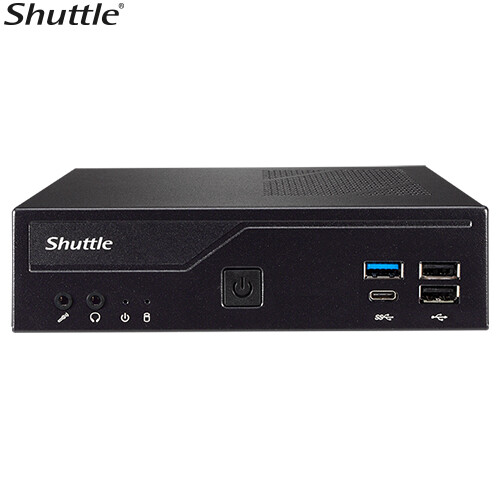

Shuttle XPC Slim series DH610 supports Intel® 12 th Gen LGA1700 processors. With Intel® new performance hybrid architecture and UHD graphics 700 series integrated, the model computes performance along with the potential for powering AI deployment. Support up to three displays via one HDMI 2.0b and two DisplayPort for display productivity and flexibility. Moreover, the model provides comprehensive connectivity with multiple ports, including four USB 3.2 Gen1 (Including one Type-C), four USB 2.0, two RS232, Intel® 2.5GbE + Intel® 1GbE LAN, and two M.2 expansion slots. DH610 can perform a reliable operation suitable for Office, Digital Signage, Kiosks, and other Multi-platform AI deployment.

- Support Intel® 12th Core™ i3/i5/i7/i9 / Pentium® Gold / Celeron® 65W processor

- Supports up to 64GB DDR4-3200 memory

- Supports three independent displays via one HDMI 2.0b and two DisplayPort

- Flexible connectivity: one M.2 2280 M Key (PCIe 4.0 x4/SATA), one M.2 2230 E

- USB 3.2 Gen1(Including one Type-C), four USB 2.0, and two RS232

- Intel® 2.5GbE + Intel® 1GbE LAN that supports Wake On Lan and Teaming Mode

CPU

Intel® 12th Gen LGA1700 socket Core i3/i5/i7/i9, Pentium, Celeron 65W Processor

Chipset

Intel® H610

Video Engine Processor

Intel® UHD Graphics series

Memory

2 x DDR4 3200/2933/2666 MHz, Max. 64GB

Storage

1 x 2.5"" HDD/SSD (max. 12.5 mm) 1 x SD card

Expansion Slots

1 x M.2 2280, M Key 1 x M.2 2230, E Key

Video Output

1x HDMI Port

2x DisplayPort

1x VGA Port (Optional)

2x USB 3.2 Gen1/Gen2 (Front)

2x USB 2.0 (Front)

2x USB 3.2 Gen1/Gen2 (Rear)

2x USB 2.0 (Rear)

1x COM Port

1 x RS232/422/485, Support 5V/12V"

1x Line out/Mic in

Network LAN

1 x Intel® 1G LAN

1 x Intel® 2.5G LAN"

Wifi

Optional

VESA

Bracket included
