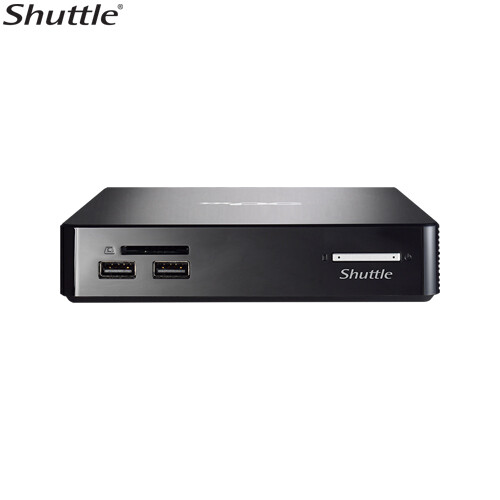

Shuttle NS02AV2 Mini PC 0.5L System-Rockchip RK3368, 2GB RAM, 16GB eMMC, LAN, 4xUSB, WIFI+BT, VESA, HDMI, Android 8.1, Free Digital Signage Software

Form Factor

Shuttle 0.57L

Processor

Rockchip RK3368 Octa core A53 1.5GHz Max.

Memory

4GB or 2GB On Board

Video Output

HDMI 2.0

Ethernet

Realtek Gigabit LAN 802.11 a/b/g/n/ac with BT 5.0

Storage Interface

eMMC 16GB or 32GB on board Optional 2.5" 7mm SATA Interface HDD Support

Front Panel

1x Power Button

1x Power LED

1x HDD LED

1x USB 2.0

1x SD Card Reader

Back Panel

1x HDMI Out

2x USB 2.0

1x Ethernet Optional - POE Support

1x Headphone/MIC Combo jack

1x DC-In

1x 2 pin Remote Power Control Pin Header

1x 2 pin Recovery Pin Header

1x Kensington Lock

Dimensions

141x141x29mm

Power

Automatics Voltage adjustment between 100 and 240VAC 50/60Hz

Wall mount type, 12V/2A, 24W(LEVEL 6)

Accessories

VESA mount

Expansion Slot

PHD5 2.5" HDD Expansion Frame (Optional)

OS Support

Android 8.1 Preinstalled
