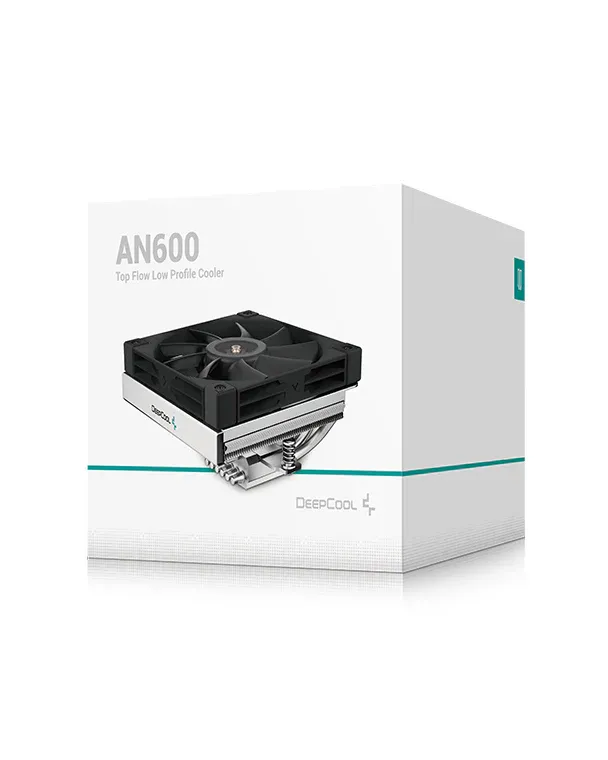

The AN600 is a low-profile CPU cooler that provides 180W of cooling to the CPU while also cooling the RAM modules. Making full use of a 120mm high airflow fan and an overhanging design, the AN600 actively cools RAM modules up to 40mm tall, while being compatible with ITX motherboards.

Stylish modern minimalist design

180W cooling power

6 heat pipe design

Balanced two-way heat pipe technology

Full ITX motherboard compatibility

FT1215 High Performance FDB PWM Fan

Low noise adapter cable

Full metal mounting bracket

Quick installation process

Application For

Intel - LGA1700/1200/1151/1150/1155

AMD - AM5/AM4

Technical Spec

Product Dimensions - 122×120×67 mm(L×W×H)

Heatsink Dimensions - 121×120×52 mm(L×W×H)

Net Weight - 628 g

Heat pipe - Ø6 mm×6 pcs

Fan Dimensions - 120×120×15 mm(L×W×H)

Fan Speed - 500~1850 RPM±10%

Fan Airflow - 61.56 CFM

Fan Air Pressure - 1.97 mmAq

Fan Noise - ≤24.4 dB(A)

Fan Speed (with LSP) - 500~1250 RPM±10%

Fan Airflow (with LSP) - 41.51 CFM

Fan Air Pressure (with LSP) - 1.19 mmAq

Fan Noise (with LSP) - ≤20 dB(A)

Fan Connector - 4-pin PWM

Bearing Type - Fluid Dynamic Bearing

Fan Rated Voltage - 12 VDC

Fan Rated Current - 0.27 A

Fan Power Consumption - 3.24 W

LED Type - White LED
