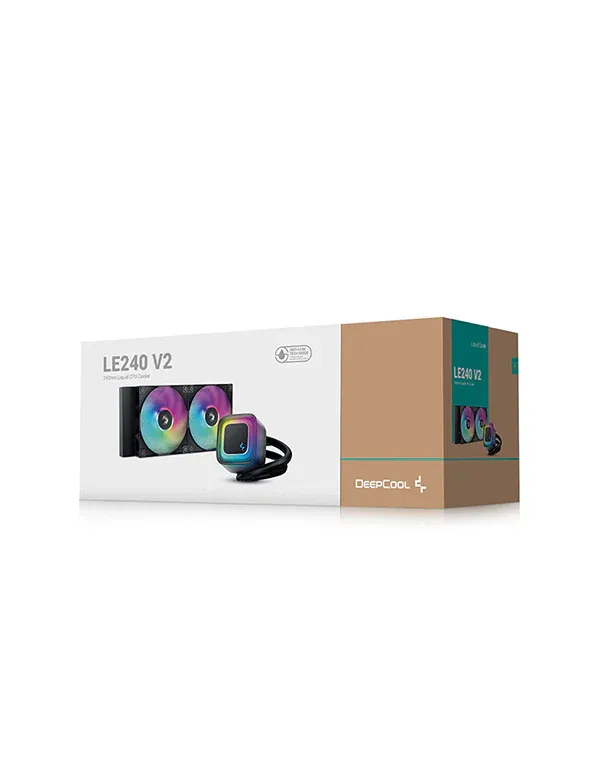

The LE240 V2 builds on DeepCool’s proven LE lineup with upgraded performance and a refreshed design. Its frosted pump head adds a modern touch, making it an excellent choice for entry-level cooling.

Application For

Intel - LGA1851/1700/1200/1151/1150/1155

AMD - AM5/AM4

Technical Spec

Net Weight - 1359 g

Radiator Dimensions - 282×120×27 mm(L×W×H)

Radiator Material - Aluminum

Tube length - 410 mm(L×W×H)

Pump Dimensions - 91×78×65 mm(L×W×H)

Pump Speed - 2500~3400 RPM±10%

Pump Connector - 4-pin PWM

Pump Rated Voltage - 12 VDC

Pump Rated Current - 0.29 A

Pump Power Consumption - 3.48 W

Fan Dimensions - 120×120×25 mm(L×W×H)

Fan Speed - 500~2100 RPM±10%

Fan Airflow - 75.89 CFM

Fan Air Pressure - 2.53 mmAq

Fan Noise - ≤31.6 dB(A)

Fan Connector - 4-pin PWM

Bearing Type - Hydro Bearing

Fan Rated Voltage - 12 VDC

Fan Rated Current - 0.17 A

Fan Power Consumption - 2.04 W

LED Type Addressable - RGB LED

LED Connector - 3-pin(+5V-D-G)

LED Rated Voltage - 5 VDC

LED Power Consumption - 2.8 W（PUMP）/ 2.1 W（FAN×2）
